DURSTON
The set includes a total of 15 half rods.
1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm and 1V shape.
In addition, it exclusively includes holes on the side. 10mm, 9mm, 8mm, 7mm, 6mm, 5mm, 4mm, 3mm, 2mm.
They include a new single tray to hold all the punches, and this sits neatly on the back of the disc cutter block.
There is a lubricating compound for the disc cutter that is included with the kit.
There is an innovative and easy clamping solution whereby you clamp and then remove the allen key (also included with the disc cutter set).
The collection also includes leveling shims to provide a complete disc cutting solution for your jewelry shop. This set contains 5 punches ranging in size from 10mm to 25mm and weighs 7.45kg.
Characteristics:
Weight: 4.8kg
Measurements: 220 x 180 x 150mm
They include a new single tray to hold all the punches, and this sits neatly on the back of the disc cutter block.
There is a lubricating compound for the disc cutter that is included with the kit.
There is an innovative and easy clamping solution whereby you clamp and then remove the allen key (also included with the disc cutter set). The collection also includes leveling shims to provide a complete disc cutting solution for your jewelry shop. This set contains 10 punches ranging in size from 3mm to 30mm and weighing 7.45kg (6mm, 8mm, 10mm, 12mm, 15mm, 18mm, 20mm, 23mm, 26mm, 30mm). mm).
Characteristics:
Weight: 4.8kg
Measurements: 220 x 180 x 150mm
Characteristics:
Diameter of inserts 50/57/64/71/78 and 85 mm
Dimensions: 320 x 260 x 170 mm
1 embedding tool that can be used on both sides and 1 plastic base for storage.
Characteristics:
Diameter in mm: 78 and 85
Dimensions (LxWxH in mm): 140 x 140 x 240
Characteristics:
Diameter in mm: 64 and 71
Dimensions (LxWxH in mm): 140 x 140 x 240
Characteristics:
Diameter: 50 and 57 MM
Dimensions: 140 x 140 x 240 MM
The set consists of 21 hardened and highly polished inserts for excellent results, plus a 50 mm cube with a unique plastic carrying tray.
Hole size: 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 17 - 19 - 21 - 23 - 25 - 28 - 32 - 36 mm
Switching takes place simply by repositioning the crank on the corresponding driveshaft.
Technical Data:
Total length: 1,400 mm
Length of wire pulling area: 950 mm
4:1 gear
Weight 45 kg
Delivery:
Pull bench, crank, pull ring and pliers
It is an excellent example of quality design and manufacturing practices at an affordable price.
The bench occupies a compact desktop, measuring just 1m in length.
Characteristics:
Weight 24 kg
Gear 4-1
Length 1 meter
When the job is done, simply hang the bench on the wall or put it away.
Delivery:
Wire pulling bench, crank, strap and pulling pliers.

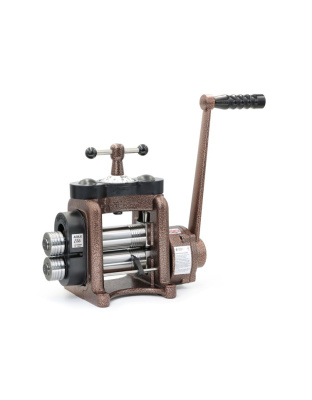

The rolling mill features maintenance-free rollers, plus an easy-to-read scale on top with English-language operating instructions.
For light laminating, this model has a planetary gear with 4 to 1 conversion
Roll Width ..................................................... 100 mm
Roll Diameter ............................. 50 mm
Max. Sheet thickness ................................... 5.5 mm
Max. Sheet width ....................................70 mm
Half-round roll ............ ......... 4, 3, 2 and 1.5 mm
Dimensions (without crank) .... 360 x 200 x 320
Weight ................ ................................. 30 kg
The rolling mill features maintenance-free rollers, plus an easy-to-read scale on top with English-language operating instructions.
For light laminating, this model has a planetary gear with 4 to 1 conversion
Roll Width ..................................................... 100 mm
Roll Diameter ............................. 50 mm
Max. Sheet thickness ................................... 5.5 mm
Max. Sheet width ....................................70 mm
Wire cross section ................... ................... 7 - 1 mm
Number of grooves ......................................................................... 9
Half round roll ................................... 4, 3, 2 and 1.5 mm
Dimensions (without crank) .... 360 x 200 x 320
Weight ................................... .............. 30 kg
The rolling mill has maintenance-free rollers as well as an easy-to-read scale on top with English-language operating instructions.
Roll Width ....................................................100 mm
Roll Diameter ............................................. 45mm
Max. Sheet thickness ................................... 4 mm
Max. Sheet width ............................. 100mm
Half round roll ................................... 4, 3, 2 and 1.5 mm
Dimensions (without crank) ......... 280 x 170 x 270 mm
Weight ............. .................................... .......16 kg
Durston’s new 11 Piece Ring Shank Bender tool incorporates eleven sets of dies (nine rounds: 8, 10, 12, 14, 16, 18, 20, 22 & 24mm, one square and one rhombus). The dies are made from tool steel and have been hardened and polished and have been precision-made for great performance. Each round die has a radiused edge so to minimise any damage to the material being formed. The unique gearing system gives great reduction making bending effortless.
This Ring Bender will bend material up to 2mm thick. Also included in the set are Delrin dies for all 11 pieces. The set is compact with the lower half housing the main body. The main body can be used in the tray holder itself. Just swing the top out the way, or take it out and bolt to a table. Alternatively, screw on the vice locater and hold it in a vice.
The rolling mill has maintenance-free bearings as well as an easy-to-read scale on top with English-language operating instructions.
Roll Width ......................................................... 80mm
Roll Diameter ............................. 45mm
Max. Plate thickness ................................... 4 mm
Max. Sheet width ....................................80 mm
Half-round roll ............ ......... 4, 3, 2 and 1.5 mm
Dimensions (without crank) .... 255 x 170 x 265
Weight ................ ................................. 15 kg
The rolling mill has maintenance-free bearings as well as an easy-to-read scale on top with English-language operating instructions.
Roll Width ..................................................................... 80mm
Roll Diameter ...................................................................45 mm
Max. sheet thickness ................................... 4 mm
Max. sheet width ...................................................60 mm
Wire cross-section ................................... 6.5 - 1 mm
Number of grooves ..................................................................... 4
Half round rolls ....................................4, 3, 2 and 1.5 mm
Dimensions (without crank) .... 255 x 170 x 265
Weight ............................... .................. 15 kg
Includes a lever-operated extendable chuck, reversible plate with 16 polished dies, and a side turner for turning thick wires up to 4mm in diameter.
Dimensions: 150 x 180 x 390 mm
Weight: 10kg
Such tools are made of hardened steel and polished and manufactured precisely,. as useful perfectly fit
the lever system incorporating we can control perfectly the force applied to form the metal
The complete unit is based on a base of 200 mm diameter.
The support where they are located tooling has an accessory which allows hold us a vise
Characteristics:
Dimensions: 200 x 200 x 110 mm
Weight: 4.9kg
The stand is 900 mm high, 450 mm wide and 700 mm long, providing a stable and secure base for the rolling mill.
The support also incorporates a useful shelf that provides greater stability to the mill.
Characteristics:
Weight: 35 kg
Lenght: 700 mm
Width: 450 mm
Height: 900 mm
Contains 20 mandrels with the measurement recorded in a range between 2.5 and 12 mm.
